Luminary

47 Aries V
Technical Data

Power: ~220 - 240V / 50 - 60Hz
Ambient/work temperature: -40°C – +40°C
Protective class: I or II
Ingress protection code: IP66
Mechanical impact protection code: IK10
Surge protection: to 10kV
Life time: L90, B10 >100 000h (G5);
L80, B10 >100 000h (HE)
CRI: 70 or 80 (G5);
70 (HE, UHE)
Controls method: 1-10V, DALI, Ampdim, Dynadimmer,
as an option - socked ZHAGA with SR driver (D4i),
- external surge arrester 10kV/5kA
external surge arrester 10kV/5kA
Photobiological risk group: RG1
Weight [kg]: 13

Product equipped with a replaceable light source LED - options:
Symbol Light source Colour temperature [K] Luminous flux [lm] Pn [W] If [mA]
47 L-25W 24-LED G5 2700 (727) 3061 25 300
47 L-25W 24-LED G5 3000 (730) 3400 32 300
47 L-25W 24-LED G5 4000 (740) 3663 25 300
47 L-32W 24-LED G5 2700 (727) 3979 32 400
47 L-32W 24-LED G5 3000 (730) 4422 32 400
47 L-32W 24-LED G5 4000 (740) 4764 32 400
47 L-39W 24-LED G5 2700 (727) 4861 39 500
47 L-39W 24-LED G5 3000 (730) 5374 39 500
47 L-39W 24-LED G5 4000 (740) 5820 39 500
47 L-46W 24-LED G5 2700 (727) 5712 46 600
47 L-46W 24-LED G5 3000 (730) 6348 46 600
47 L-46W 24-LED G5 4000 (740) 6840 46 600
47 L-54W 24-LED G5 2700 (727) 6534 54 700
47 L-54W 24-LED G5 3000 (730) 7263 54 700
47 L-54W 24-LED G5 4000 (740) 7827 54 700
47 L-61W 24-LED G5 2700 (727) 7331 61 800
47 L-61W 24-LED G5 3000 (730) 8151 61 800
47 L-61W 24-LED G5 4000 (740) 8783 61 800
Luminous flux values shall be declared for ambient temperature 25°C. The class of modules used assumes 7% tolerance of the declared luminous flux value and a ±5% tolerance of the declared colour temperature value. The weight of the unit may slightly differ for individual production batches.
Symbol Light source Colour temperature [K] Luminous flux [lm] Pn [W] If [mA]
47 L-25W 24-LED G5 2700 (827) 2876 25 300
47 L-25W 24-LED G5 3000 (830) 3031 25 300
47 L-25W 24-LED G5 4000 (840) 3204 25 300
47 L-32W 24-LED G5 2700 (827) 3434 32 400
47 L-32W 24-LED G5 3000 (830) 3940 32 400
47 L-32W 24-LED G5 4000 (840) 4166 32 400
47 L-39W 24-LED G5 2700 (827) 4568 39 500
47 L-39W 24-LED G5 3000 (830) 4814 39 500
47 L-39W 24-LED G5 4000 (840) 5090 39 500
47 L-46W 24-LED G5 2700 (827) 5366 46 600
47 L-46W 24-LED G5 3000 (830) 5656 46 600
47 L-46W 24-LED G5 4000 (840) 5980 46 600
47 L-54W 24-LED G5 2700 (827) 6138 54 700
47 L-54W 24-LED G5 3000 (830) 6470 54 700
47 L-54W 24-LED G5 4000 (840) 6841 54 700
47 L-61W 24-LED G5 2700 (827) 6887 61 800
47 L-61W 24-LED G5 3000 (830) 7259 61 800
47 L-61W 24-LED G5 4000 (840) 7677 61 800
Luminous flux values shall be declared for ambient temperature 25°C. The class of modules used assumes 7% tolerance of the declared luminous flux value and a ±5% tolerance of the declared colour temperature value. The weight of the unit may slightly differ for individual production batches.
Symbol Light source Colour temperature [K] Luminous flux [lm] Pn [W] If [mA]
47 L-36W 36-LED G5 2200 (722) 4144 36 300
47 L-47W 36-LED G5 2200 (722) 5387 47 400
47 L-58W 36-LED G5 2200 (722) 6581 58 500
47 L-69W 36-LED G5 2200 (722) 7731 69 600
47 L-80W 36-LED G5 2200 (722) 8843 80 700
47 L-92W 36-LED G5 2200 (722) 9921 92 800
47 L-97W 36-LED G5 2200 (722) 10448 97 850
47 L-36W 36-LED G5 2700 (727) 4591 36 300
47 L-47W 36-LED G5 2700 (727) 5969 47 400
47 L-58W 36-LED G5 2700 (727) 7292 58 500
47 L-69W 36-LED G5 2700 (727) 8568 69 600
47 L-80W 36-LED G5 2700 (727) 9801 80 700
47 L-92W 36-LED G5 2700 (727) 10997 92 800
47 L-97W 36-LED G5 2700 (727) 11582 97 850
47 L-36W 36-LED G5 3000 (730) 5101 36 300
47 L-47W 36-LED G5 3000 (730) 6633 47 400
47 L-58W 36-LED G5 3000 (730) 8140 58 500
47 L-69W 36-LED G5 3000 (730) 9522 69 600
47 L-80W 36-LED G5 3000 (730) 10895 80 700
47 L-92W 36-LED G5 3000 (730) 12226 92 800
47 L-97W 36-LED G5 3000 (730) 12877 97 850
47 L-36W 36-LED G5 4000 (740) 5494 36 300
47 L-47W 36-LED G5 4000 (740) 7145 47 400
47 L-58W 36-LED G5 4000 (740) 8731 58 500
47 L-69W 36-LED G5 4000 (740) 10260 69 600
47 L-80W 36-LED G5 4000 (740) 11740 80 700
47 L-92W 36-LED G5 4000 (740) 13175 92 800
47 L-97W 36-LED G5 4000 (740) 13878 97 850
Luminous flux values shall be declared for ambient temperature 25°C. The class of modules used assumes ±5% tolerance of the declared luminous flux value and a ±5% tolerance of the declared colour temperature value. The weight of the unit may slightly differ for individual production batches.
Symbol Light source Colour temperature [K] Luminous flux [lm] Pn [W] If [mA]
47 L-36W 36-LED G5 2700 (827) 4314 36 300
47 L-36W 36-LED G5 3000 (830) 4546 36 300
47 L-36W 36-LED G5 4000 (840) 4806 36 300
47 L-36W 36-LED HE 2200 (722) 4960 36 300
47 L-36W 36-LED HE 2700 (727) 5026 36 300
47 L-36W 36-LED HE 3000 (730) 5532 36 300
47 L-36W 36-LED HE 4000 (740) 5684 36 300
47 L-36W 36-LED UHE 3000 (730) 6100 36 300
47 L-36W 36-LED UHE 4000 (740) 6191 36 300
47 L-47W 36-LED G5 2700 (827) 5609 47 400
47 L-47W 36-LED G5 3000 (830) 5911 47 400
47 L-47W 36-LED G5 4000 (840) 6249 47 400
47 L-47W 36-LED HE 2200 (722) 6542 47 400
47 L-47W 36-LED HE 2700 (727) 6606 47 400
47 L-47W 36-LED HE 3000 (730) 7274 47 400
47 L-47W 36-LED HE 4000 (740) 7475 47 400
47 L-47W 36-LED UHE 3000 (730) 8043 47 400
47 L-47W 36-LED UHE 4000 (740) 8164 47 400
47 L-58W 36-LED G5 2700 (827) 6851 58 500
47 L-58W 36-LED G5 3000 (830) 7220 58 500
47 L-58W 36-LED G5 4000 (840) 7634 58 500
47 L-58W 36-LED HE 2200 (722) 8093 58 500
47 L-58W 36-LED HE 2700 (727) 8139 58 500
47 L-58W 36-LED HE 3000 (730) 8966 58 500
47 L-58W 36-LED HE 4000 (740) 9216 58 500
47 L-58W 36-LED UHE 3000 (730) 9947 58 500
47 L-58W 36-LED UHE 4000 (740) 10097 58 500
47 L-69W 36-LED G5 2700 (827) 8049 69 600
47 L-69W 36-LED G5 3000 (830) 8483 69 600
47 L-69W 36-LED G5 4000 (840) 8970 69 600
47 L-69W 36-LED HE 2200 (722) 9615 69 600
47 L-69W 36-LED HE 2700 (727) 9626 69 600
47 L-69W 36-LED HE 3000 (730) 11067 69 600
47 L-69W 36-LED HE 4000 (740) 10908 69 600
47 L-69W 36-LED UHE 3000 (730) 11815 69 600
47 L-69W 36-LED UHE 4000 (740) 11992 69 600
47 L-80W 36-LED G5 2700 (827) 9207 80 700
47 L-80W 36-LED G5 3000 (830) 9705 80 700
47 L-80W 36-LED G5 4000 (840) 10262 80 700
47 L-80W 36-LED HE 2200 (722) 11112 80 700
47 L-80W 36-LED HE 2700 (727) 11067 80 700
47 L-80W 36-LED HE 3000 (730) 12462 80 700
47 L-80W 36-LED HE 4000 (740) 12550 80 700
47 L-80W 36-LED UHE 3000 (730) 13648 80 700
47 L-80W 36-LED UHE 4000 (740) 13854 80 700
47 L-92W 36-LED G5 2700 (827) 10330 92 800
47 L-92W 36-LED G5 3000 (830) 10889 92 800
47 L-92W 36-LED G5 4000 (840) 11515 92 800
47 L-92W 36-LED HE 2200 (722) 12584 92 800
47 L-92W 36-LED HE 2700 (727) 12462 92 800
47 L-92W 36-LED HE 3000 (730) 13141 92 800
47 L-92W 36-LED HE 4000 (740) 14143 92 800
47 L-92W 36-LED UHE 3000 (730) 15448 92 800
47 L-92W 36-LED UHE 4000 (740) 15682 92 800
47 L-97W 36-LED G5 2700 (827) 10879 97 850
47 L-97W 36-LED G5 3000 (830) 11468 97 850
47 L-97W 36-LED G5 4000 (840) 12128 97 850
47 L-97W 36-LED HE 2200 (722) 13311 97 850
47 L-97W 36-LED HE 2700 (727) 13141 97 850
47 L-97W 36-LED HE 3000 (730) 14507 97 850
47 L-97W 36-LED HE 4000 (740) 14920 97 850
47 L-97W 36-LED UHE 3000 (730) 16337 97 850
47 L-97W 36-LED UHE 4000 (740) 16584 97 850
Luminous flux values shall be declared for ambient temperature 25°C. The class of modules used assumes ±5% tolerance of the declared luminous flux value and a ±5% tolerance of the declared colour temperature value. The weight of the unit may slightly differ for individual production batches.

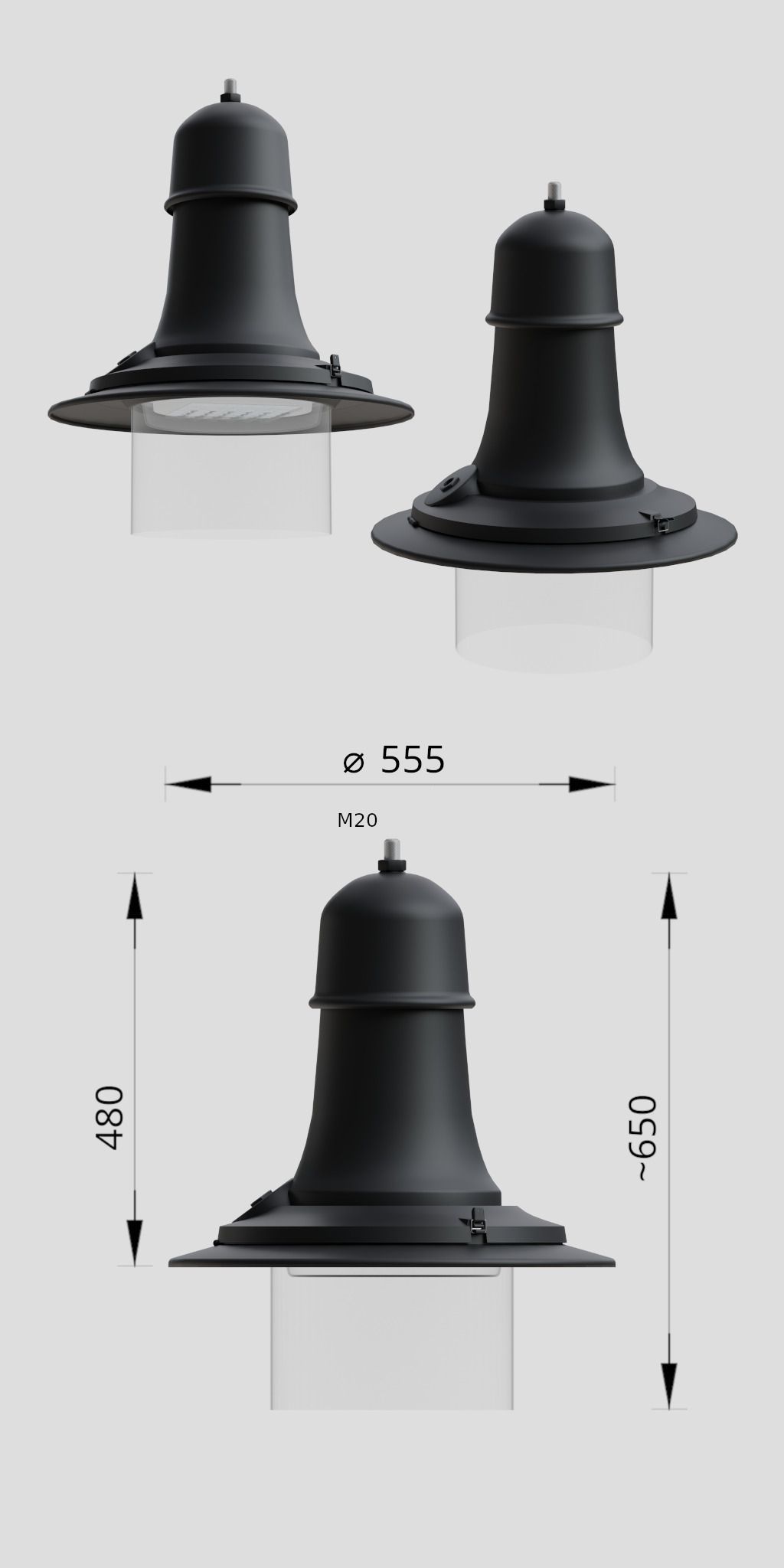

Detailed image of Luminary 47 Aries V
